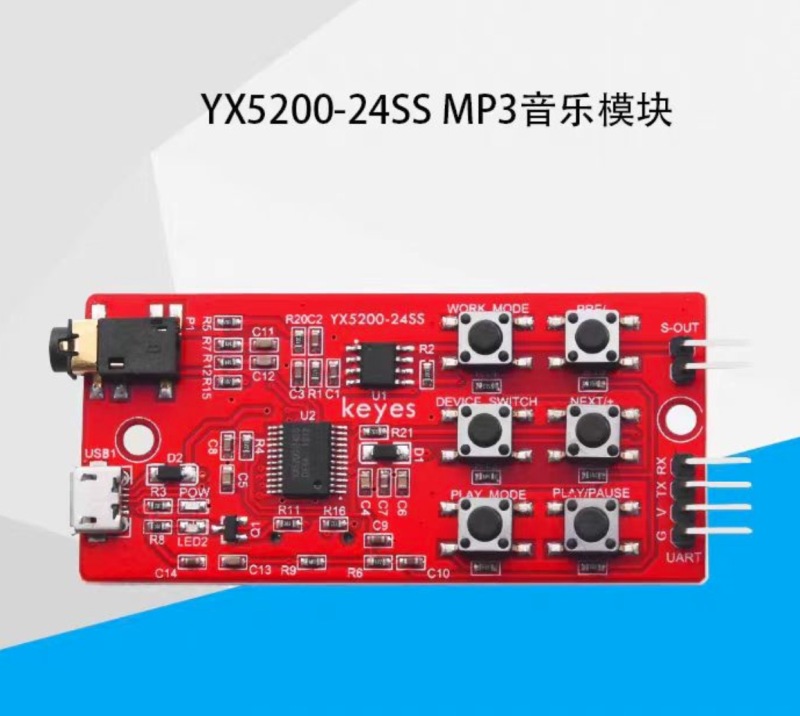

As a learning module, the core of Keyes YX5200-24SS MP3 module is YX5200-24SS sound chip which perfectly integrates the hard interface of MP3, WAV and WMA and supports TF card driver, with the characteristics of convenience and stability and reliability.
Features

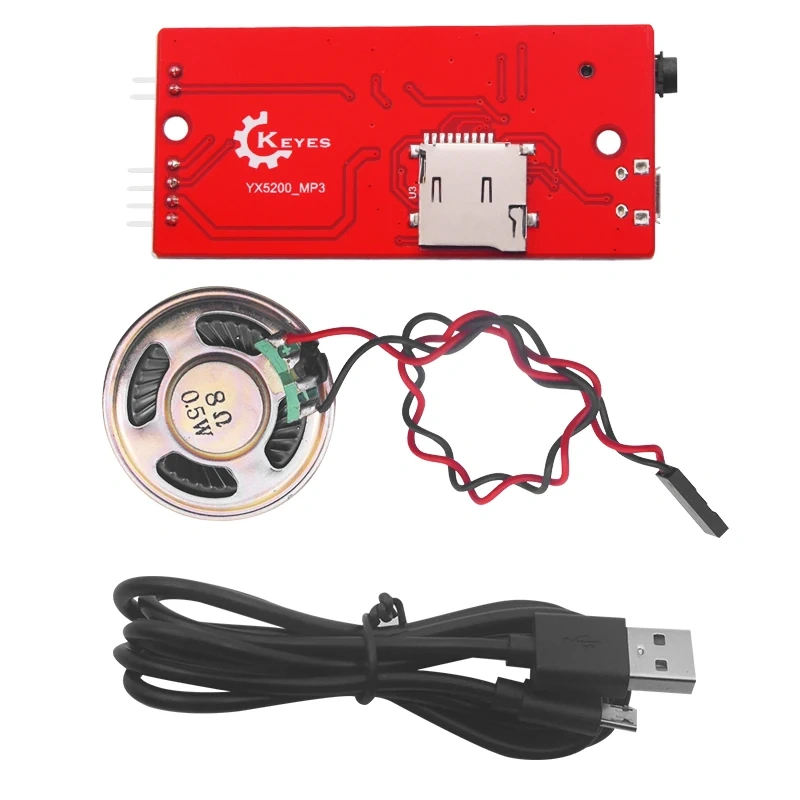

1)With TF card slot, we can directly read and play music in the card.
2)With a serial communication port(UART), control music playback via serial communication.
3)With micro USB interface(USB1), read SD card content and download music
4)With earphone port（P1）, convenient to listen to music

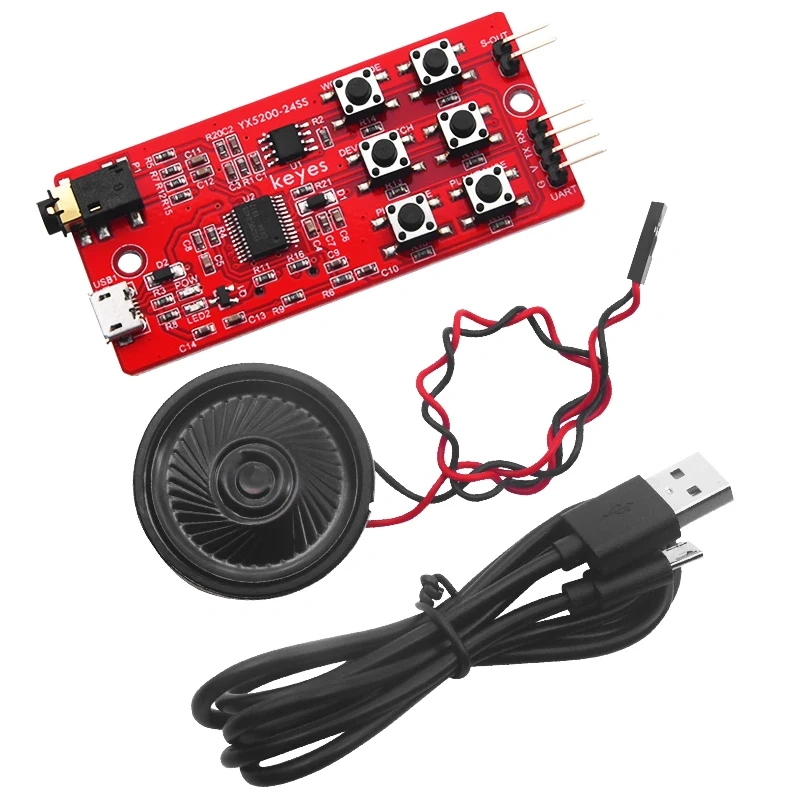

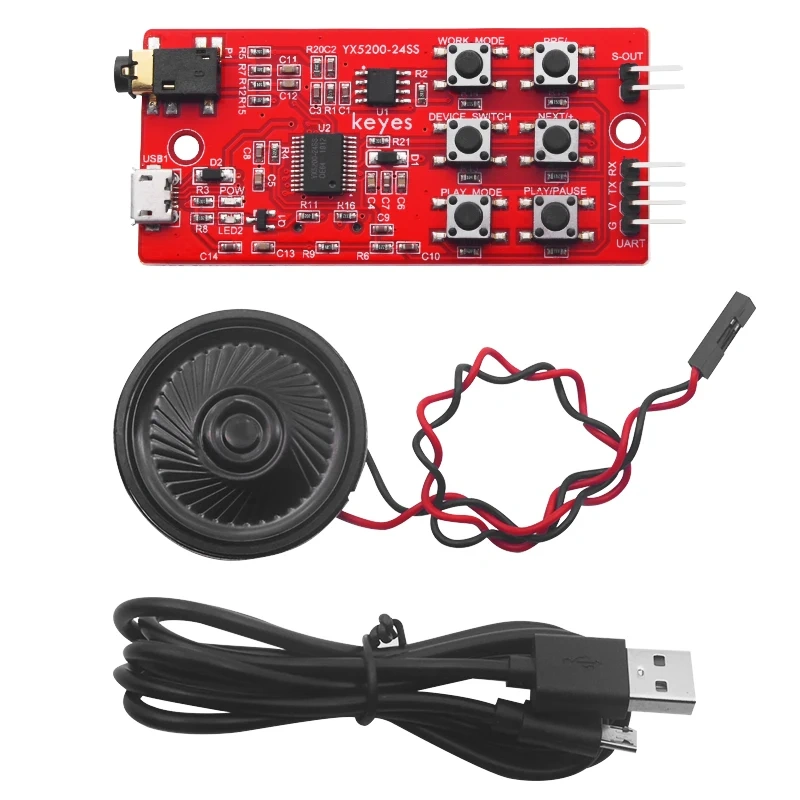

5)Integrated audio amplifier chip and built-in speaker interface (S-OUT), which can be directly plugged in the speaker to play. The audio magnification is 8 times. The power connected to speaker must be large enough. The initial sound on powering on is maximum by default. Please lower the sound before playing. When the speaker resistance is 8 ohms, the maximum output power is 1.2W.

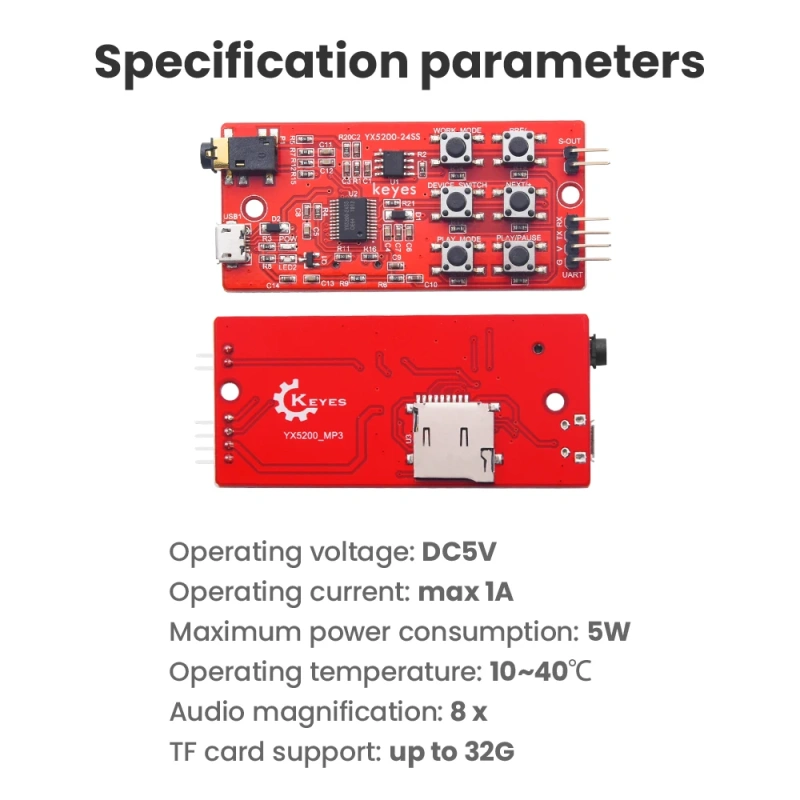

Specification
Working voltage: DC 5V
Working current: maximum 1A
Maximum power consumption: 5W
Working temperature: 10~40℃
Audio magnification: 8 times
Support TF card: up to 32G
Size: 33*77*9mm
Weight: 11.2g
