Solemnly declare: this product can not be battery-powered, remember to remember!

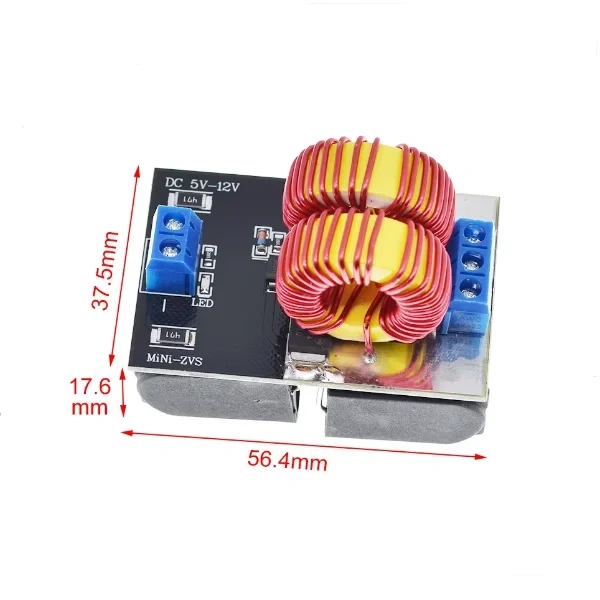

1, mini version ZVS no taps finished induction heating Tesla Jacob's ladder drive without cooling fan
2、This heating plate needs certain hands-on ability and related knowledge. If even
If the positive and negative poles of the power supply will not be divided, it is recommended not to shoot. Photographed out of the problem, the seller does not assume any responsibility! Please make sure you can safely and correctly use before you buy!
3, high power 120W (12V induction heating). Push the high-voltage package 12V, primary 10 turns, about 30W.
4, the input voltage DC 5V ~ 12V, this voltage range for the work of the voltage, not the power supply no-load voltage!
(Voltage more than 12V or less than 5V seller does not guarantee that can work properly, the input voltage is not in this range, out of the problem sellers are not responsible!)
5, to confirm that all components welded correctly, the positive and negative poles of the power cord is not reversed, connected to the load (heating coil, high voltage package), and then energized! No load can not be energized! No-load energization is easily damaged!
6, heating coil
The width of the object to be heated as far as possible in the heating coil inner diameter of 1/3 to 1/2 between, do not exceed 2/3!
The diameter of the object to be heated as far as possible within 20mm, too large heating will be more difficult to heat to red, after all, the power is limited.
Induction heating, generally working 5 minutes to power off to cool. Because induction heating current is relatively large, the coil heat is also relatively large. When heated, part of the heat generated by the heated object will be transmitted to the heating coil, a long time, the temperature of the heating coil will be very high. If the heating coil is connected to the terminal, it will melt the plastic part of the terminal! Therefore, it is better to solder the heating coil directly to the PCB board when induction heating. Please note this point.
For long time use, it is recommended to use copper tube as coil and pass water to cool it.
7、Heating coil
The width of the object to be heated as far as possible in the heating coil inner diameter of 1 / 3 to 1/2 between, do not exceed 2 / 3!
The diameter of the object to be heated as far as possible to control within 20mm, too large heating will be more difficult to heat to red, after all, the power is limited.
Induction heating, generally working 5 minutes to power off to cool. Because induction heating current is relatively large, the coil heat is also relatively large. When heated, part of the heat generated by the heated object will be transmitted to the heating coil, a long time, the temperature of the heating coil will be very high. If the heating coil is connected to the terminal, it will melt the plastic part of the terminal! Therefore, it is better to solder the heating coil directly to the PCB board when induction heating. Please note this point.
Long-term use is recommended to use copper tubing as a coil and water cooling.
8, push the high-voltage package, induction heating current, input voltage, primary turns, heating coil turns, the size of the object to be heated. The store's test is for reference only!
9,
Blue LED power indicator, with or without power, see if the light is on to know!
Indicator light does not light up may be due to: 1, the line is not connected, the power supply is not energized. 2, the board has components damaged.
Indicator light is darker, it should be the power supply power is insufficient, need to replace the higher power supply.
Tapless is more suitable for induction heating

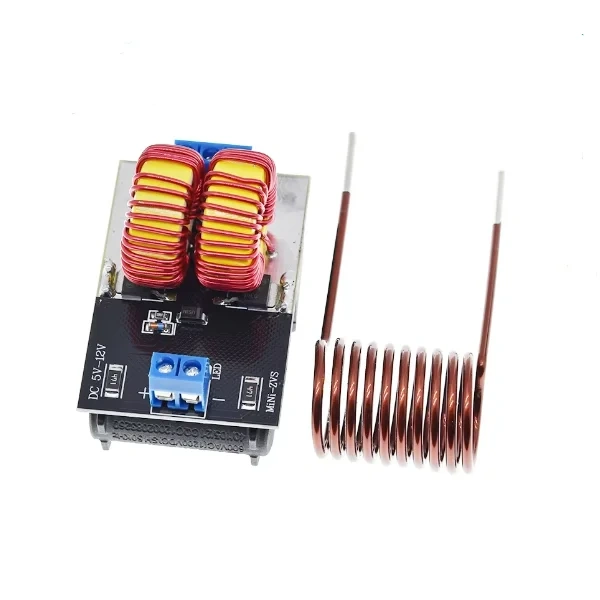

Heating coil can be welded to the PCB board in this way
