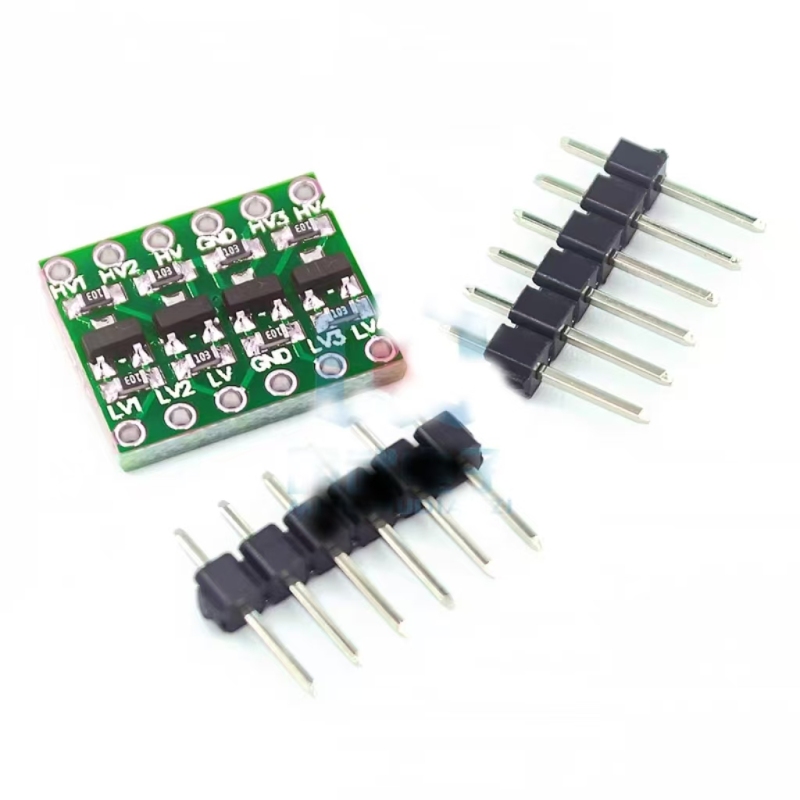

5V-3V IIC UART SPI 2 4 Channel Level Converter Module forArduino

This product is a level conversion module, not a power conversion module! Must connect 5V power supply to work normally!

Product features:
1. Four-channel bidirectional conversion of 3V and 5V levels is realized with four-channel four-mos tube.
2. Power input with anti-backconnection protection, integrated with 3.3VLDO, and can provide no more than 150mA of current
3. With power indicator light, it is clear whether it works or not
4. Bi-directional conversion of 3V-5V level of bus signals such as UART, IIC, 1-Wire and SPI can be realized
Purchase of the product is available:
Welding test of a good module

The following content is not provided, declined to "graduation design needs" and other reasons to obtain, do not agree to buy:
1. Paper instruction and CD
2. Original design files, including but not limited to SCH files and PCB files
3. Specific technical support, such as programming
4. Other information other than what is available as indicated above

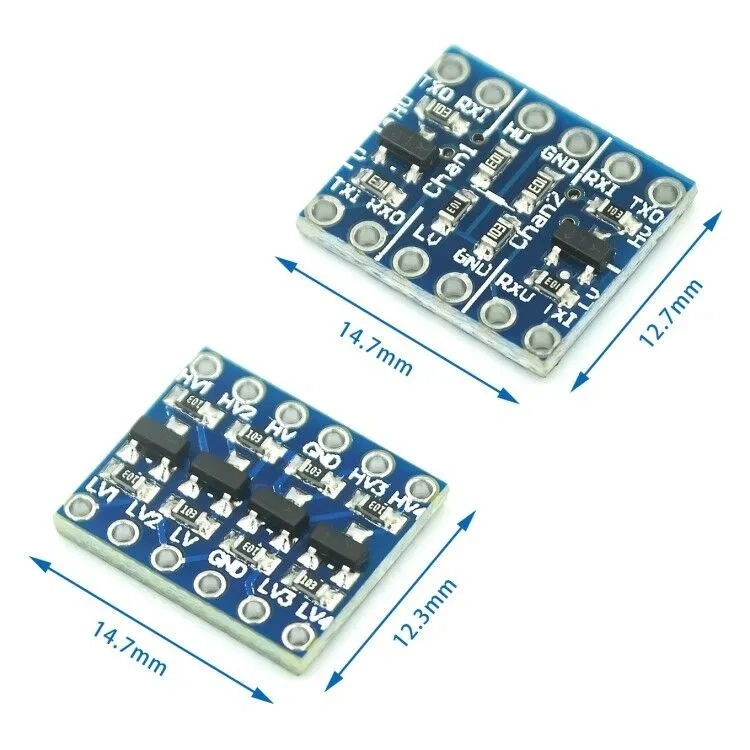

The following is the module size diagram, which can be easily inserted into the bread board
