Description
Product Parameters:
ADC offset error:±5mV
ADC conversion time:2us
ADC full power bandwidth:8.2MHz 3dB
DAC offset error:±3mV
DAC input all 0 error:2mV
Temperature measurement range:-40~105℃
Measurement error:±3℃
Power supply VDD:2.7-5V
IIC communication frequency:400KHz(MAX)
Product Features:

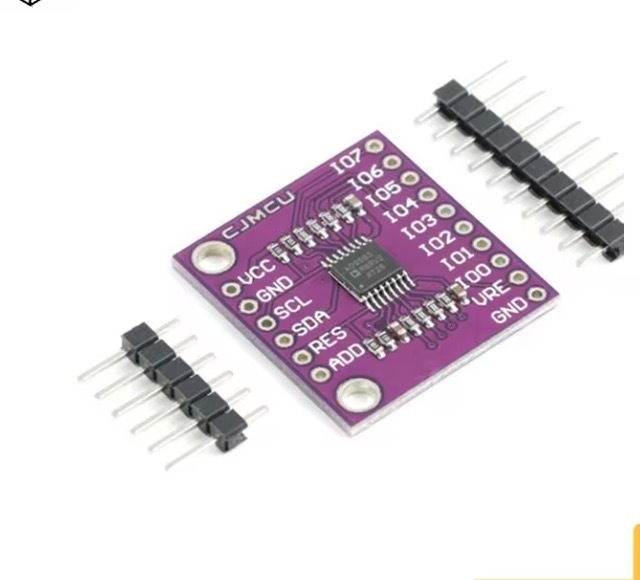

The AD5593R integrates 8 I/O pins that can be individually configured as DAC outputs, ADC inputs, digital outputs, or digital inputs. When the 1/O pin is configured as an analog output, it is driven by a 12 bit DAC. DAC output range is 0V to VREF, or 0V to 2 × VREF. When the l/O pin is configured as an analog input, it is connected to a 12 bit ADC through an analog multiplexer. ADC input range is 0 V to VREF, or 0 V to 2 × VREF. The l/O pin can also be configured as a universal digital input or output (GPIO) pin. By accessing the GPIO register through 12C write/read operations, the GPIO pin status can be set or read back. The AD5593R integrates a 2.5V, 20 ppm/℃ reference voltage source (default off) and a temperature indicator (indicating chip temperature). The temperature value is read back as part of the ADC reading sequence
