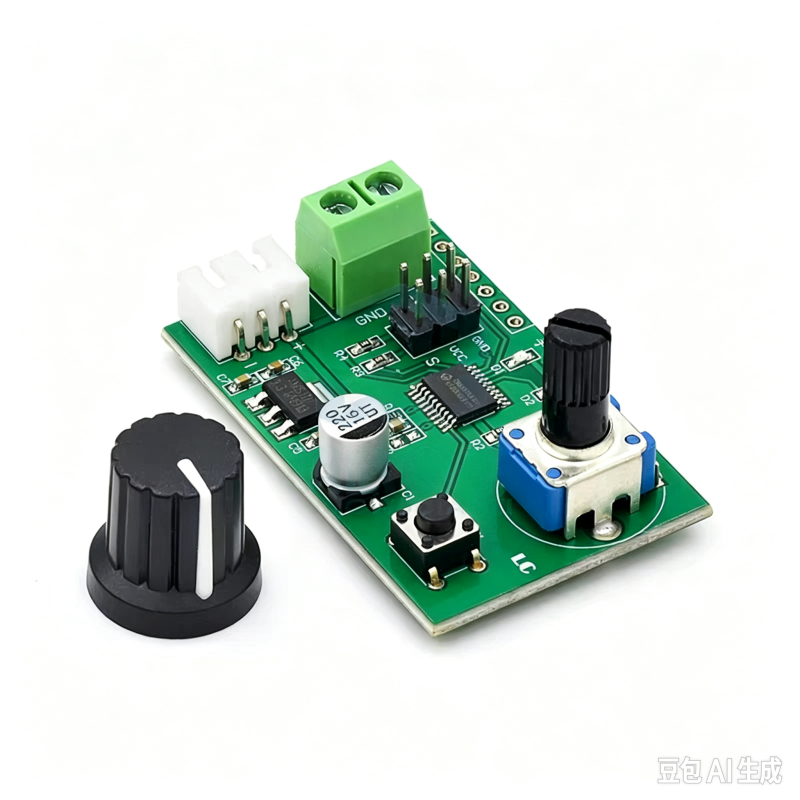

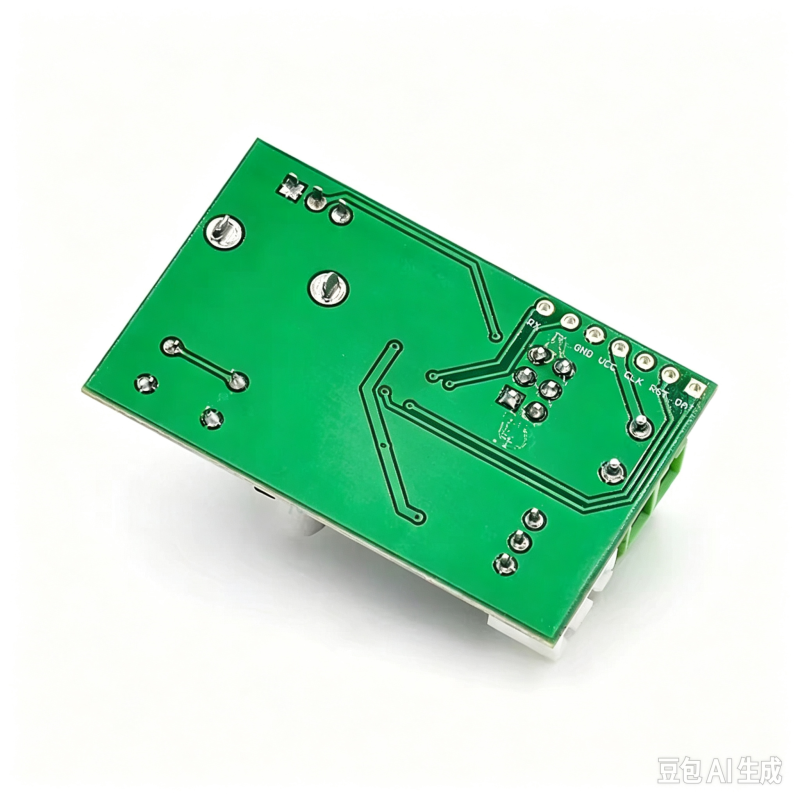

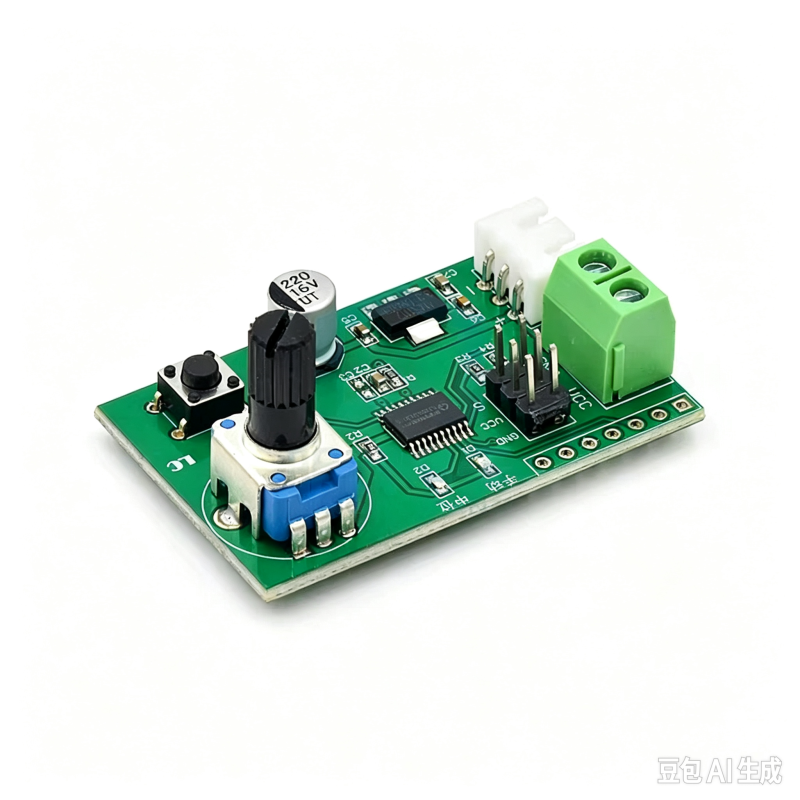

Product Introduction:
The rotary servo control module is a plug and play, simple and easy to use servo controller, with three servo control methods: rotary adjustment back to center function and serial command control
Product features:
1. A mature and stable 8-bit MCU on board is used to generate high-resolution PWM signals for precise control
2. Support manual mode and center return mode, switch through buttons, with mode indicator light
3. Support knob adjustment or serial command control in manual mode
4. Number of control channels: 2 channels (M0 and M1 servo motors). When using knob adjustment and center return functions, both servo motors can be controlled simultaneously. When using serial port commands, both servo motors can be controlled separately
5. Servo control accuracy: 0.09 degrees (i.e. PWM limit change value of 1us); Support servo with a control cycle of 20ms and a pulse width between 0.5 and 2.5ms
You can directly use the 2S carp battery charging head to debug and return to the steering gear
Power supply voltage range: 5-9V (specific based on the actual servo power supply voltage used)
