Description

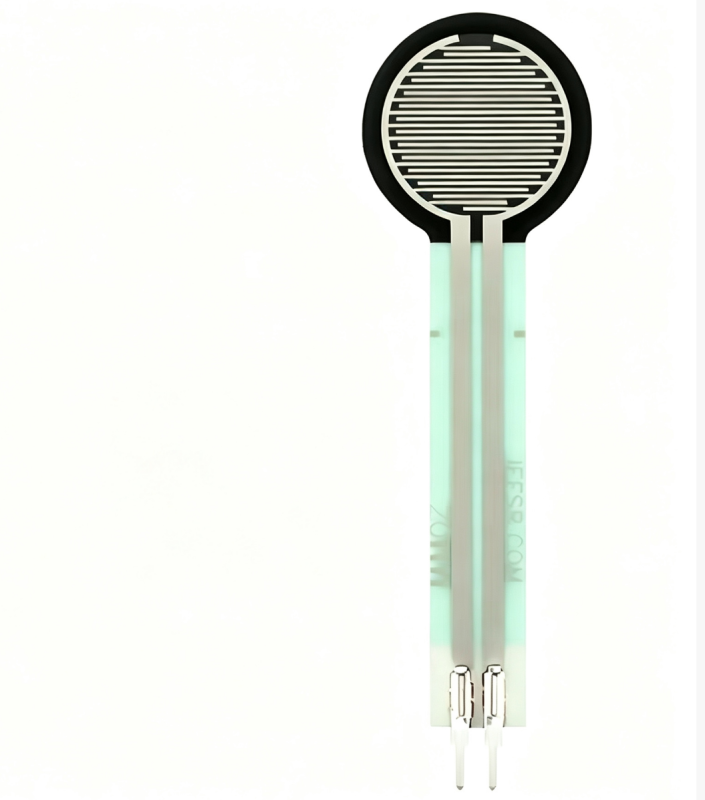

Product Model: FSR402:
FSR can be seen as a resistor, through the size of the pressure to change its resistance, the resistance (in ohms per unit Ω) depends on how much repression.
These sensors are fairly low cost and easy to use, but they rarely accurate.
They sort is various, performance difference is only about 10%.So basically you use FSR, you should probably only expect to get a response range.
Although the FSR can detect the weight, but choose their to get concrete data on the weight of is impossible.
However, for most of the touch sensitive applications, such as "how much" this will be squeezed or push, they are a good choice, because of the high cost performance!
Parameter:As we've said, FSR makes resistance changing as more and more pressure, when there is no pressure sensor looks like an infinite resistance (open), with the increase of pressure, resistance decreased.

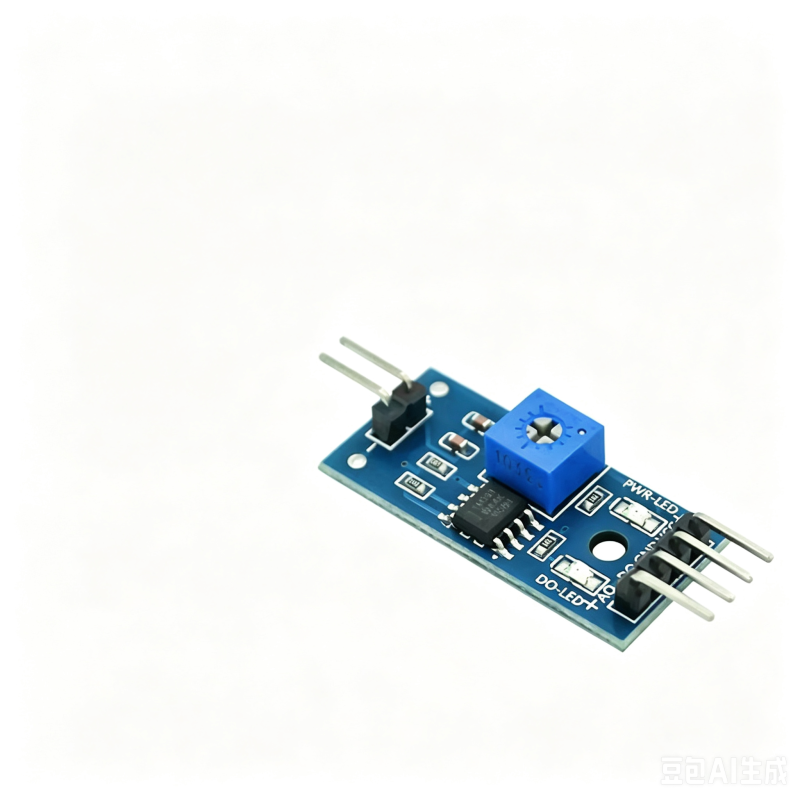

The graph shows under different pressure measurement sensor resistance value.(please note that the force is not in grams, but Newton) RFP thin film pressure sensor dedicated resistance-voltage conversion module.
The resistance signal of the sensor is converted into an analog voltage signal or high and low level.
Product parameters:
Appearance size: 1.4*3.2cm (± 1mm)Output voltage range: 0-5v
Instructions for use:4. AO analog output interface
