1. Compatibility: Designed for Arduino and other microcontrollers that require a USB to TTL interface.n2. Voltage Options: Offers both 3.3V and 5.5V power supply options, catering to various project requirements.n3. Signal Ports: Features all signal ports of the FT232RL chip, ensuring TTL/CMOS level communication.n4. Indicator Light: Integrates RXD/TXD transceiver communication indicator light for easy status monitoring.n5. Temperature Resistance: Constructed to withstand high temperatures of up to 105℃, making it suitable for various environments.n6. Pin Definition: Clearly labeled six-pin definitions for DTR, RX, TX, VCC, CTS, and GND.nnn**Versatile Connectivity and Compatibility**nThe FT232RL USB to TTL Serial Adapter Module is an essential component for anyone working with microcontrollers like Arduino. It serves as a bridge between your computer's USB port and the TTL serial interface, allowing for seamless communication between the two. This adapter module is not just a simple USB to TTL converter; it's a robust solution that supports a wide range of applications, from educational projects to industrial automation.nn**Reliable Performance and Easy Integration**nDesigned with the end-user in mind, the FT232RL module offers a straightforward setup process. The six-pin definitions are clearly labeled, ensuring that connecting to your microcontroller is a breeze. The integrated RXD/TXD transceiver communication indicator light provides real-time feedback on data transmission, making troubleshooting a thing of the past. Moreover, the module's temperature resistance of up to 105℃ guarantees reliable performance even in high-temperature environments.nn**Optimized for Efficiency and Flexibility**nWhether you're working with 3.3V or 5.5V power supplies, this USB to TTL converter module is engineered to accommodate your needs. The optional power supply options allow for direct target voltage provision on VCC and GND pins, ensuring that your projects are not limited by the power constraints of the module. The FT232RL FTDI USB 3.3V 5.5V to TTL Serial Adapter Module is the go-to solution for anyone looking for a robust, flexible, and efficient USB to TTL converter for their Arduino or other microcontroller projects.

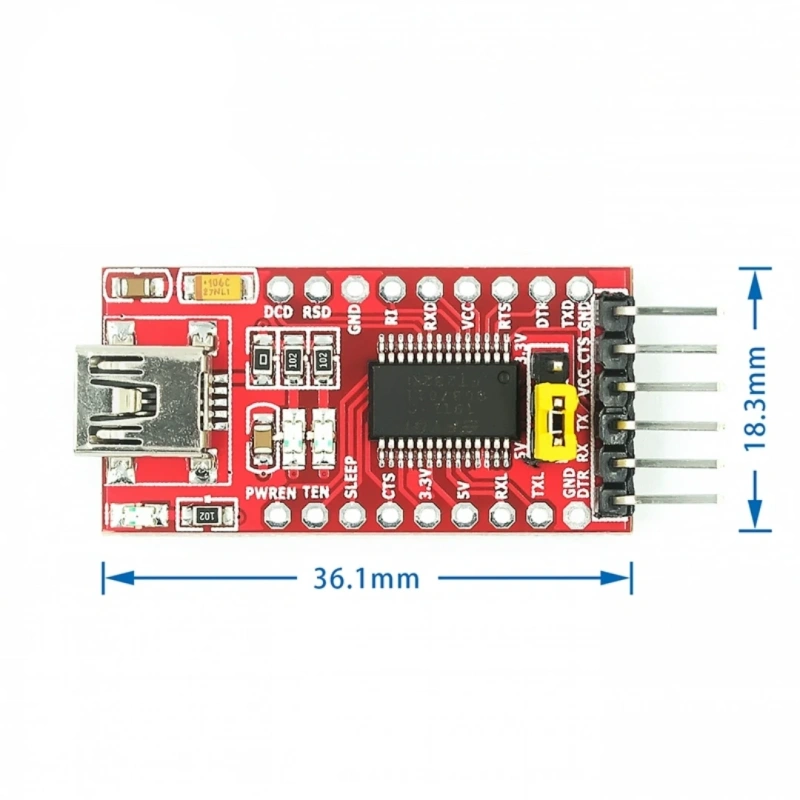

The six pin definitions are: DTR RX TX VCC CTS GND
[Hardware Introduction]
·Extract all signal ports of FT232RL chip, TTL/CMOS level;
·RXD/TXD transceiver communication indicator light;
·USB power supply, optional 5V or 3.3V interface level (if other levels are required, the target voltage can be directly provided on the VCC and GND pins).
