Your position: Home > 3D/CNC/Mechanical > Controllers > MACH3 Motion Controller Breakout Board

1/1

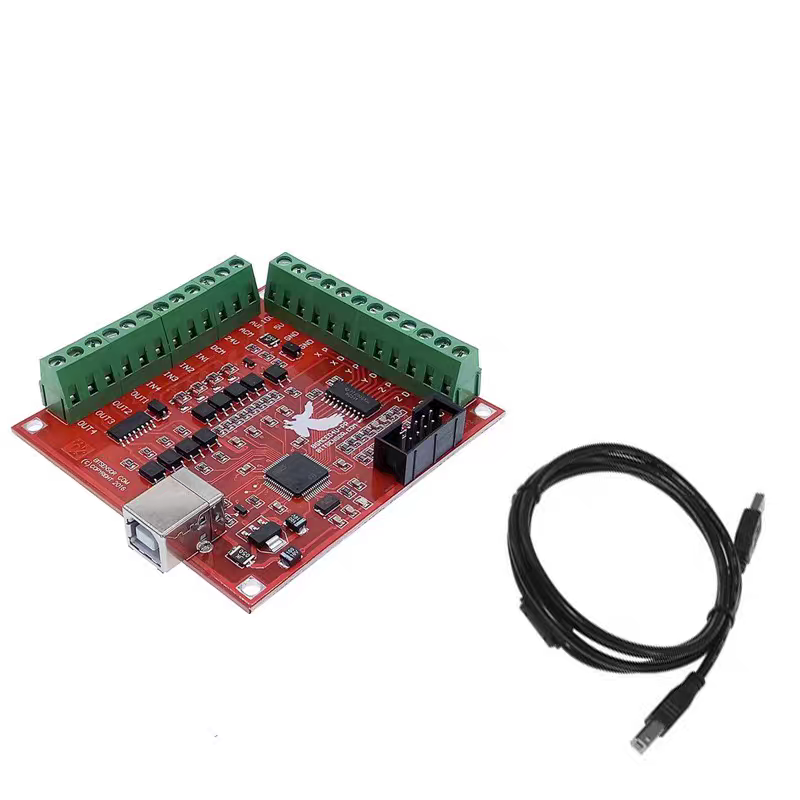

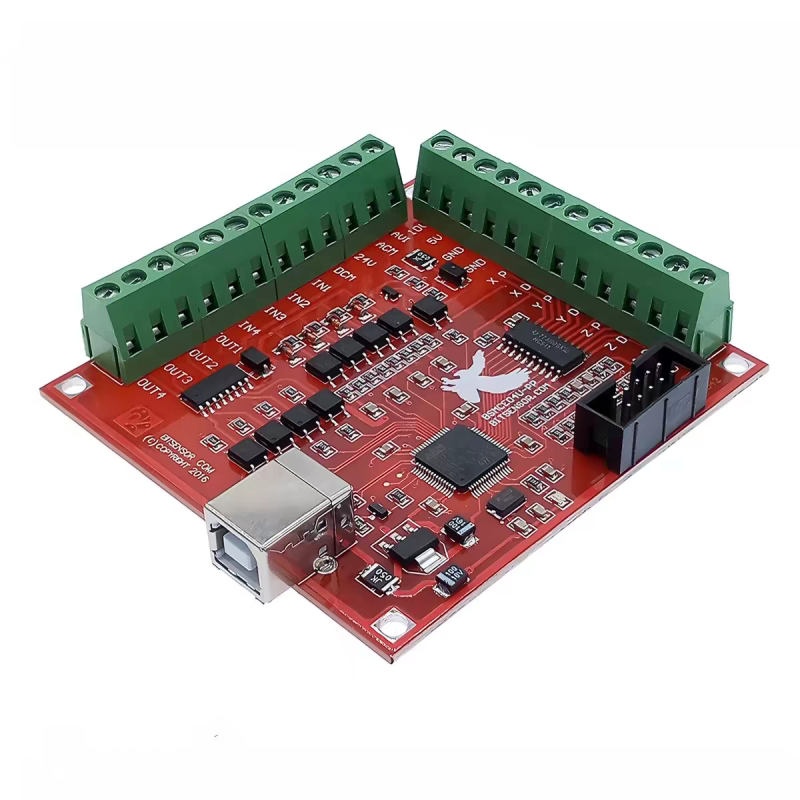

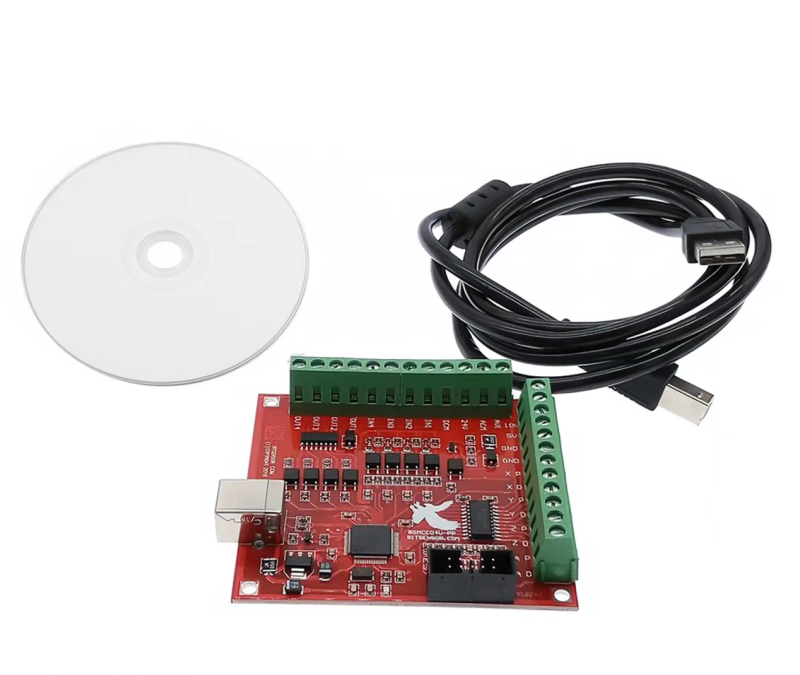

MACH3 Motion Controller Breakout Board

Name: MACH3 Motion Controller Breakout Board
Brand: MY SHOP
SKU: ELY2409
Price: 4.36 USD
Availability: InStock

SKU: ELY2409

0.0 (0)

0 Sold

$4.36

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Support for 4-axis linkage,you can connect four stepper motor drives or servo drives
Maximum step-pulse frequency is 100KHz,which is suitable for the servo or stepping motor
Support automatic probe tool
Support Emergency input
Support for limit switch
Support for connecting electronic handwheel
Need use external 24V DC power supply to isolate USB and external port,and to make the system more stable
Have 0-10V output port,you can use mach3 software to control the spindle motor speed
4 general-purpose inputs,you can connect the limit switch,estop switch,probe switch,back to zero and other device
4 general-purpose isolated relay drive output interface,can drive four relays for controlling the spindle starts,forward rotating and reverse rotating,pumps and other device
1 status LED,indicate connection status on the board
