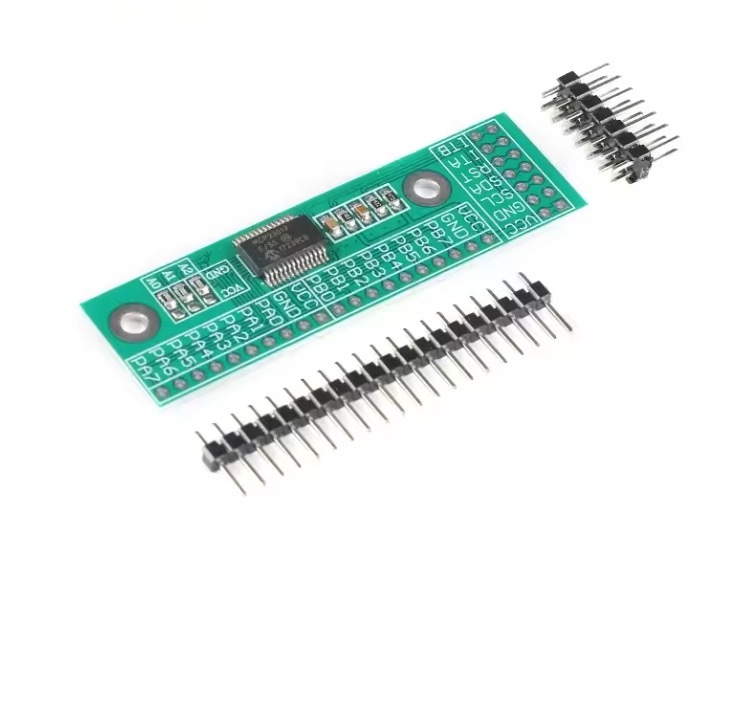

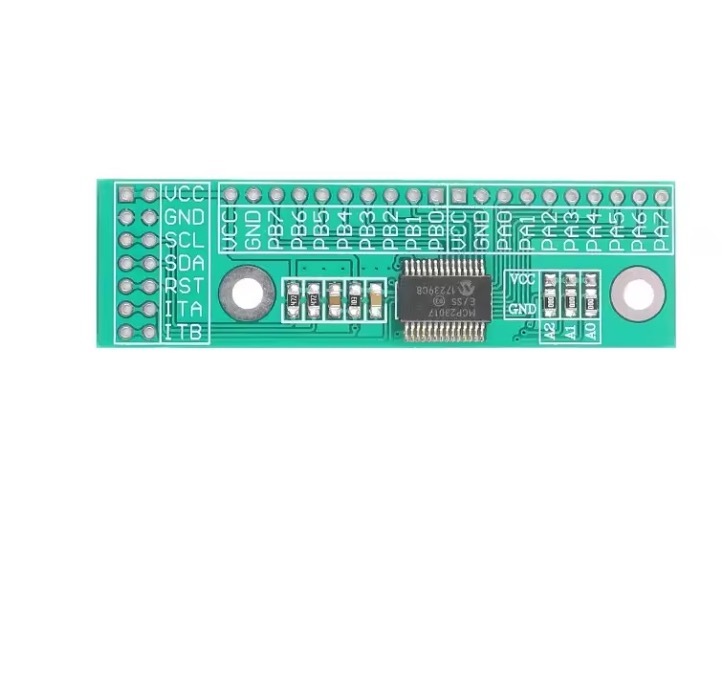

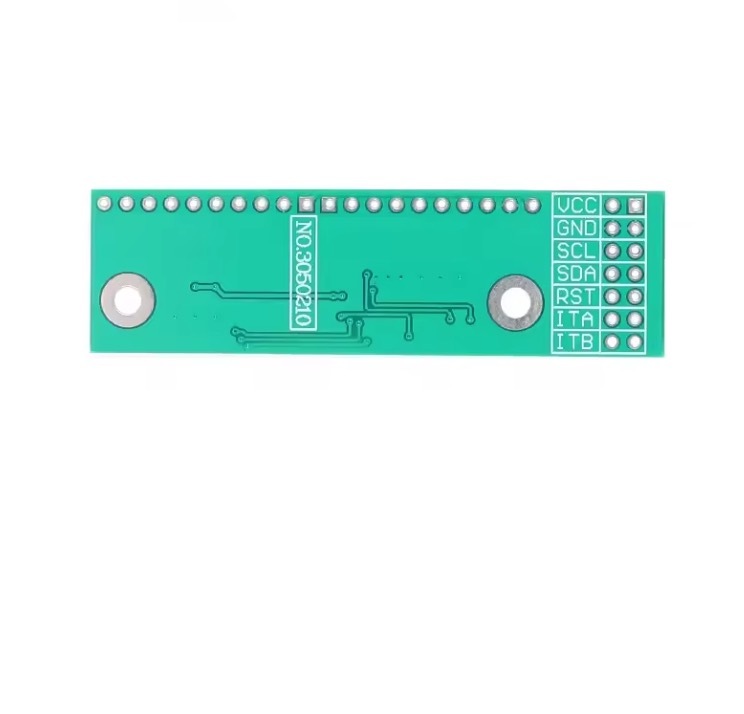

MCP23017 IIC to 16 Bit IO Expansion Module

Product Parameters:
Working temperature range:-40℃~85℃
Working voltage:3.0V~5.5V
IIC communication frequency:1.7MHz maximum
Operating current:1μA
Size:65*19mm M3 mounting hole

Product Features:
MCP23017 can convert 16 bit parallel data into serial data on the IC interface and can convert each other. Internally integrated power on reset (POR) circuit, reset to the default state of the device. Two independent programmable interrupt source outputs. The polarity flip register can be configured with GPIO input polarity or output, and can be set to use pull-up resistors. The interrupt function can be activated for all 10 configured inputs. 10 ports have strong driving ability, and the current can be poured and pulled up to 25mA
