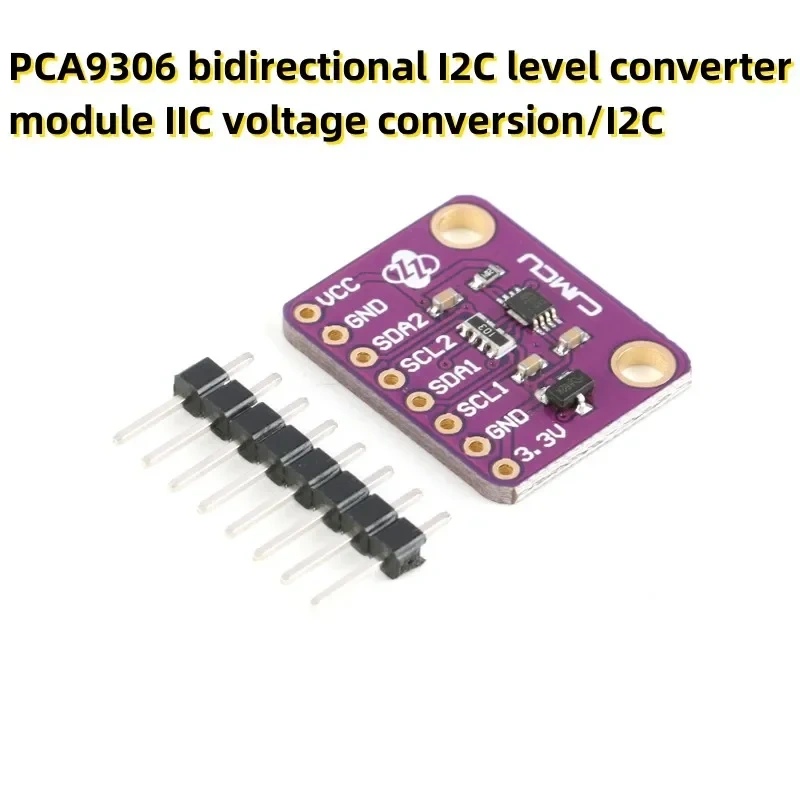

PCA9306 Bidirectional I2C Level Translation Module

Product Parameters:
Board VCC:0V~5.5V
Chip working reference voltage Vref1,Vref2:0V~5.5V
Working environment temperature:-40℃~85℃
Board size:21.3mm*16.7mm*2.6mm,with two M3 mounting holes

Product Features:
The IIC level converter can enable communication between two IIC devices with different signal levels, converting the reference levels of 1.2V-3.3V and 1.8V-5.5V to each other. Internal low conduction resistance can reduce signal propagation delay. It is also possible to achieve normal communication between two IIC devices with different communication rates, such as a converter with one side at 400KHz and the other side at 100KHz, but the maximum communication rate of the system is slightly less than 100KHz due to the small signal propagation delay
