Product Overview:

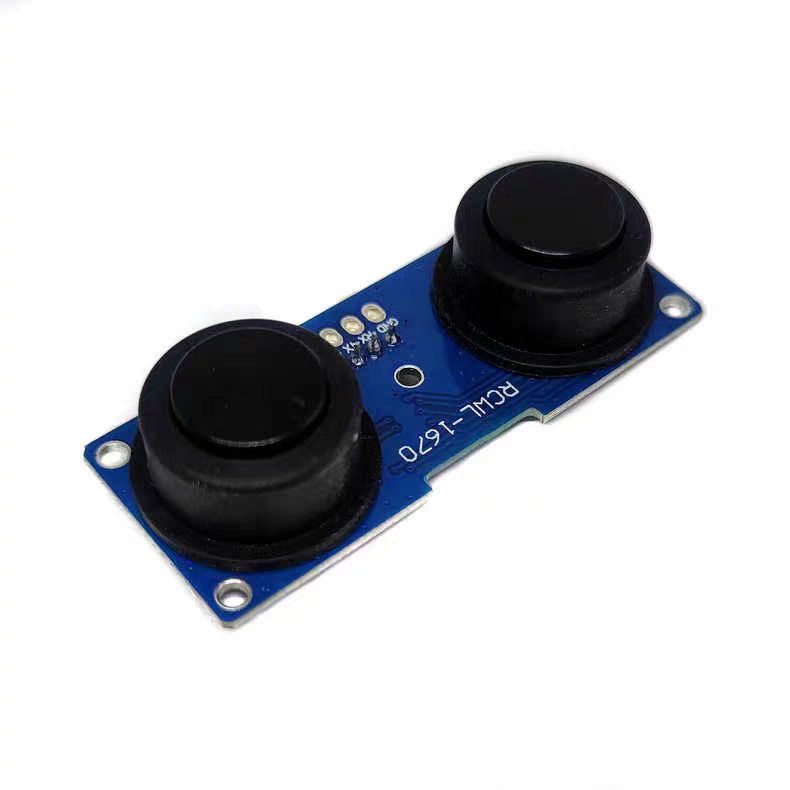

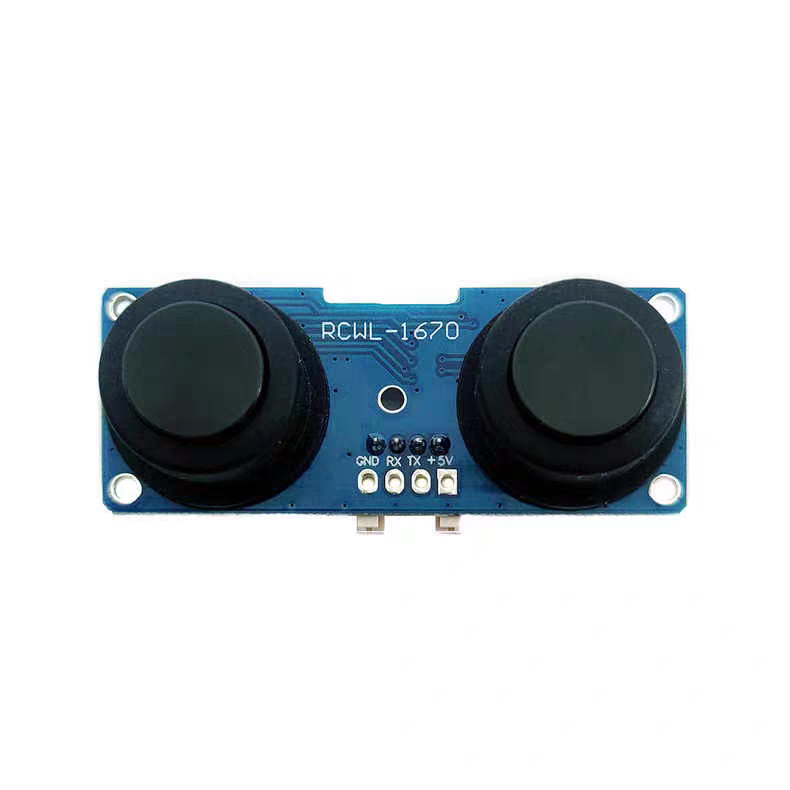

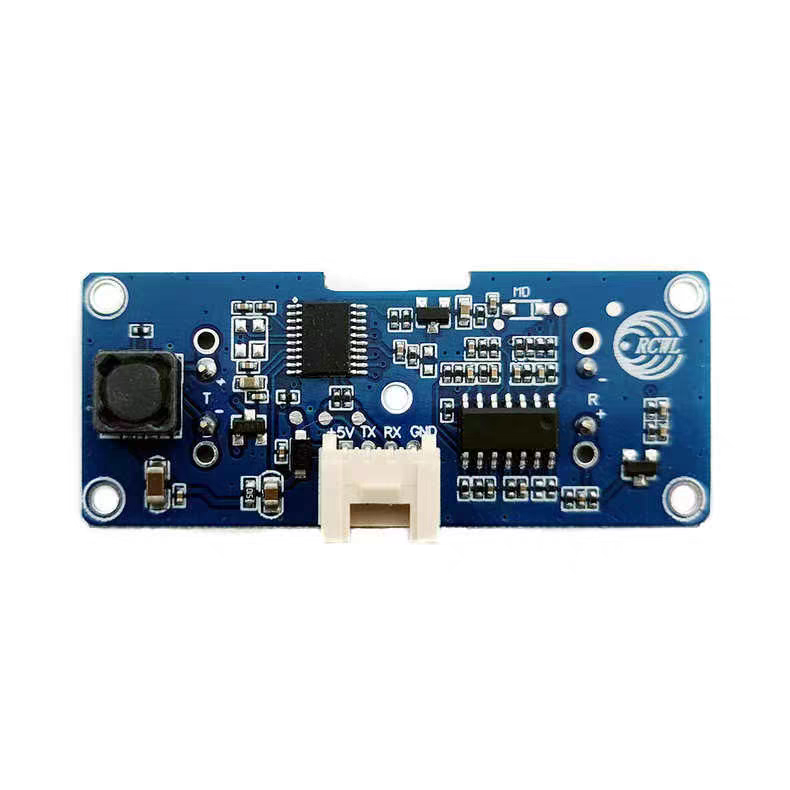

The 1670 is a waterproof, transmitting and receiving split ultrasonic ranging module. 2cm-400cm ranging range, working at a wide voltage of 3-5 V, 1.5uA@33V / 3.5uA@5V Ultra low standby power consumption. The module includes a transmitter and receiver split waterproof ultrasonic sensor and control circuit. The external control software is compatible with our HC-SRO4 module
The module has waterproof and dustproof functions, suitable for damp and harsh measurement situations. The module has ultra-low standby power consumption and is suitable for battery applications
Main Characteristics:
Working voltage:3-5.5V
Working current:6mA
Standby current:3.5uA@5V,1.5uA@3.3V
Software compatibility:HC-SR04
2CM blind spot, 4M typical farthest ranging
50mS measurement cycle
Typical Applications:
Outdoor robots
Obstacle avoidance liquid level measurement
Garbage can detection
Other ranging applications
