Product Description

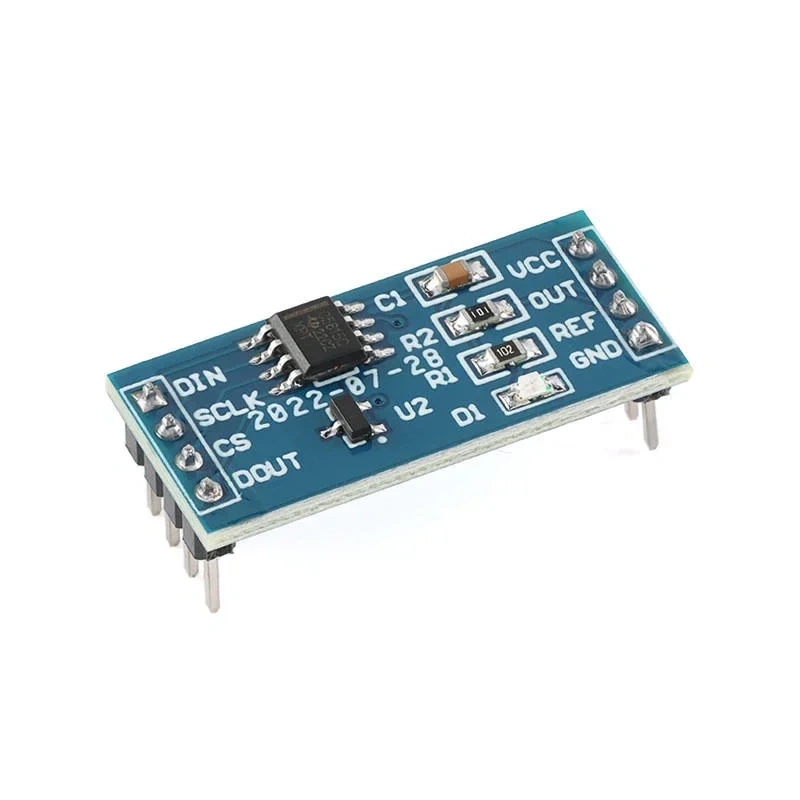

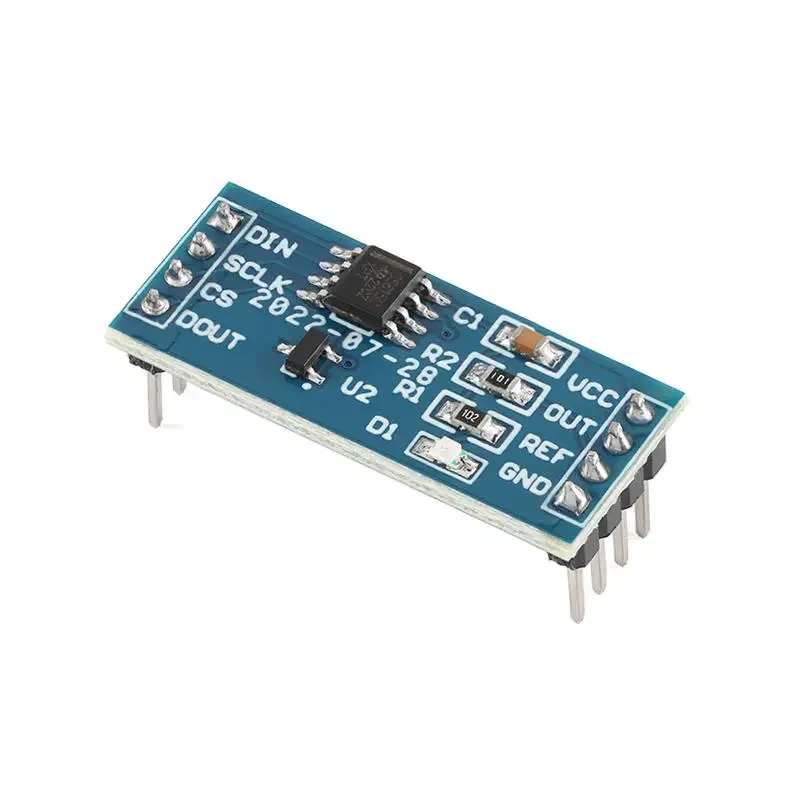

TLC5615 10-bit Serial DAC Digital-To-Analog Converter Digital-To-Analog Conversion Module

Onboard TLC5615 chip, TLC5615 is a digital-to-analog converter with serial interface, its output is voltage type, the maximum output voltage is twice the reference voltage value, with power-on reset function, the performance is better than the early current type output DAC , the serial input of 10-bit data can be completed only through 3 serial buses, and it is easy to interface with industrial standard microprocessors or microcontrollers (single-chip microcomputers).

1. The onboard TL431 voltage reference chip can also be connected to an external reference voltage

2. All the pins of the chip have been drawn out, and the operation can be controlled by the single-chip microcomputer

3. Working voltage: 5V
